Aria Art Plotter
A large-format pen plotter built with 3D-printed parts and aluminum extrusion for drawing physical artwork.
Project documentation
Before you build
Five answers, each linked to its source
What does it cost?
Not documented
No cost in the reviewed sources.
Can I sell what I build?
Yes, with creditCommercial use OK, with credit
Hardware CERN-OHL-S-2.0 · Software GPL-3.0. Licensing source
What’s open?
4 of 6CAD: AvailableBOM: AvailablePCB: Not documentedCode: AvailableSim: Not documentedGuide: Available
PCB, sim not documented. All six files
Is it maintained?
Not documented
No activity snapshot yet. Activity
01 / Under the shell
The specifications.
Hardware, build and software on one sheet. Every fact links to where we found it.

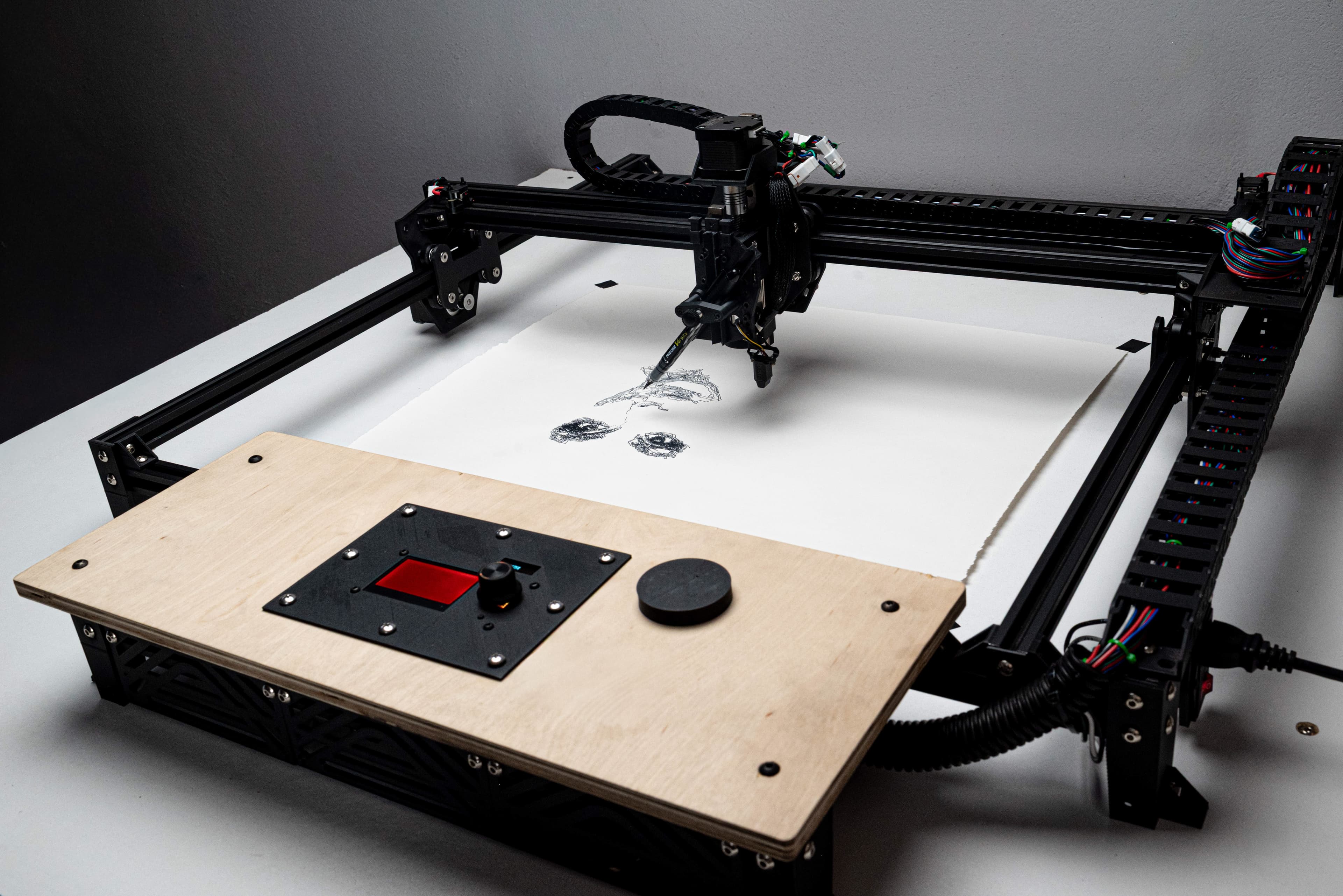

Aria Art Plotter is a pen plotter for artists, built with 3D-printed parts and a 2020 aluminum-extrusion frame. It supports tools including pens, pencils, brushes and stamps. The repository provides STL and DXF design files, firmware, a bill of materials and an assembly guide.
Hardware
- Actuators
- 4 · NEMA 17 stepper motors BOM.md
- Build
- Mixed · 3D-printed parts · CNC/laser-cut files Documentation
- Usable drawing area
- 500mm × 500mm, expandable README
- Z-axis travel
- 37mm, adjustable to 42mm README
- Frame
- 2020 aluminum extrusion README
- Motion
- Dual Y-axis motors, MGN12 linear rails and T8 lead screw README
- Controller
- BIGTREETECH Manta M5P V1.0 README
- Compute
- BIGTREETECH CB1 V2.2 README
Building it
Not documented.
02 / The files behind the robot
What’s open.
Six parts of the build, each checked separately. Gaps stay visible.
| Part | Status | What’s there | License | Source |
|---|---|---|---|---|
| CAD | Available | STL files for 3D printing and DXF design files. | Not documented | stl/ |
| Bill of materials | Available | Bill of materials available in Markdown, spreadsheet and CSV formats. | Not documented | BOM.md |
| Electronics | Not documented | Not documented | Not documented | No source found |
| Code | Available | Arduino sketch and Klipper configuration files. | Not documented | klipper/ |
| Simulation model | Not documented | Not documented | Not documented | No source found |
| Assembly guide | Available | 170-page assembly guide. | Not documented | AriaArtPlotterAssemblyManual_V1.pdf |
03 / Know before you build
Can you sell it?
Yes, with creditCommercial use OK, with credit
The hardware design is CERN-OHL-S-2.0. The code is GPL-3.0. Commercial use is allowed if you keep the maker’s copyright and license notices. Changes you distribute must be shared under the same license.
- Hardware
- CERN-OHL-S-2.0
- Software
- GPL-3.0
